Product Details:
|
| Highlight: | 9.2kW Water Cooled Evaporative Air Conditioner,380V Water Cooled Evaporative Air Conditioner,9.2kW Industrial Evaporative Air Conditioner |
||
|---|---|---|---|

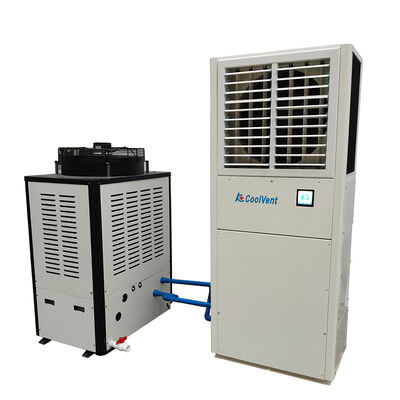

Industrial Water Cooled Evaporative Air Conditioner 9.2kW Large room Cooling Ventilation
| Water-Cooled Evaporative Air-Conditioner | ||
| Indoor Main Unit | ||
| Model No. | KCV-SYL-32 | |
| Rated Voltage | 380V~50Hz | |
| Nominal Cooling Power | 34 kW | Working Condition A 27/19℃ W 32/37℃ |
| Nominal Cooling Power Consumption | 9.2 kW | |
| Nominal Cooling COP | 3.7 | |
| Rated Current | 15 A | |
| Rated Power | 9.2 kW | |
| Max. Running Current | 10.5A | |
| Max. Running Power | 13kW | |
| Inlet /Outlet Cooling Water Temperature | 32℃/37℃ | |
| Cooling Water Flow Capacity(m3/h) | 8 | |
| Cooling Water Pipe Diameter | D40 | |
| Air Delivery distance | 8-10M | |
| Max.Airflow (m3/h) | 12000 | |
| Discharged Side / Suction Side Allowed Running Pressure |
2.8 Mpa 1.5MPa |
|
| High /Low Voltage Max. Allowed Running Pressure |
2.8 Mpa 1.5MPa |
|
| Noise | 68 dB(A) | |
| Refrigerant Model Allowed Injection Capacity: |
R22 3500g X2 |
|
| Product Size | 1500*460*1800mm | |
| Product Weight | 280 KG | |
| Water-Cooled Evaporative Air-Conditioner | ||
| Outdoor Main Unit | ||
| Rated Voltage | 380V~50Hz | |
| Rated Power | 0.53 kW | |
| Rated Current | 0.55 A | |
| Max.Airflow (m3/h) | 5000 | |
| Air Delivery distance | 8-10M | |
| Cooling Water Pipe Diameter | D25/D32 | |
| Product Size | 920*620*1250mm | |
| Product Weight | 55 KG | |
